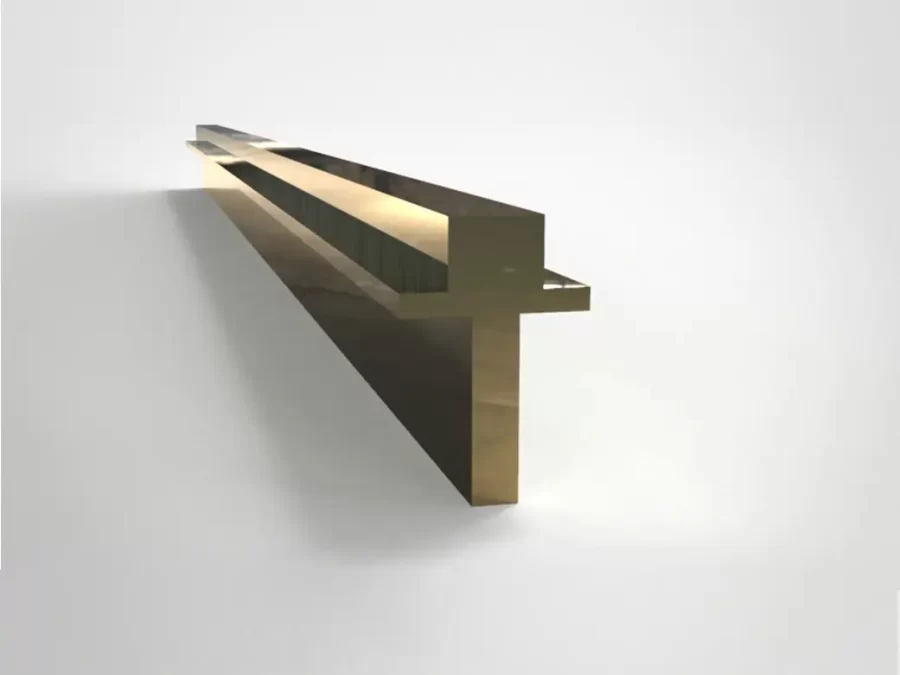

SMI502 Stair Insert – Designed in a simple but elegant style that integrates seamlessly leaving a minimal architectural finish – accentuating stair design. The SMI502 is developed to sit 4mm proud and is engineered with a cross design to create a high slip resistance. With side flanges that ensure the Insert sits level in the sawcut, covers any small chipping, and adhesive spillage meaning it always has that final high-end appeal. Being a polished, solid brass it has a very durable, aesthetic finish and can be applied to certain curved stairs. The SM502 Stair Nosing is the perfect fit to amplify any feature stair design.
Key Benefits:
- Adds Aesthetic Value
- Protect Stair Treads
- Improve Safety
Product Specs:
Design: Solid Brass t profile with flanges for smooth finish, covering chipping, additional adhesive and ensures sitting level.

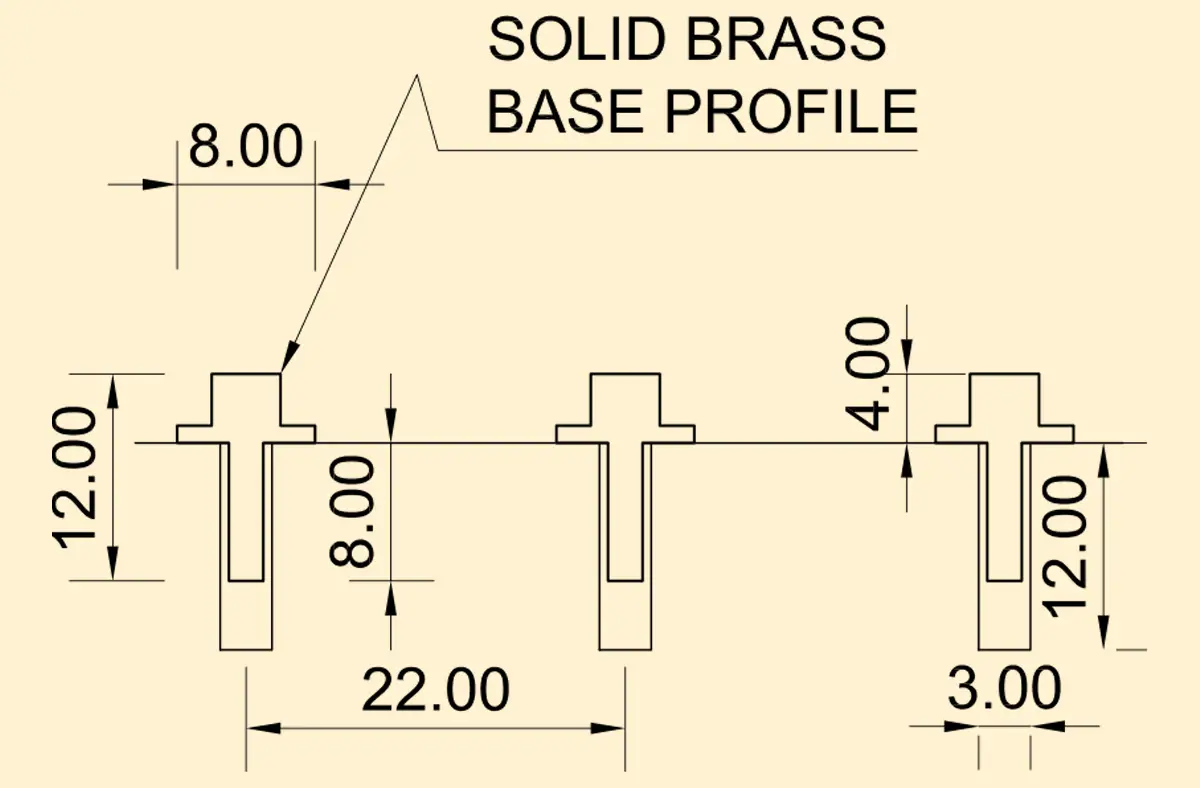

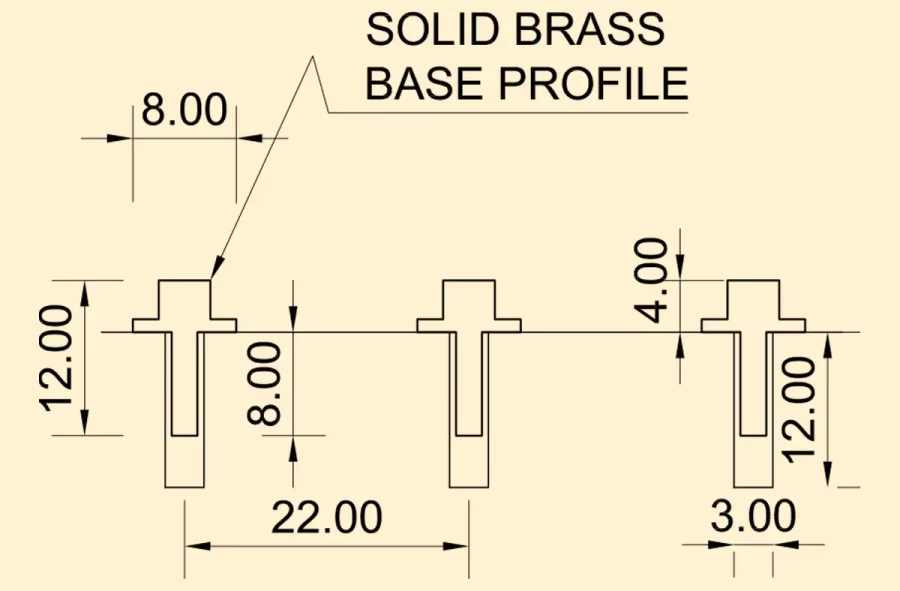

Application: 1st Insert 25mm from Tread Edge, 2nd/3rd Insert at 22mm Centres.
Product Dimensions: 8mm wide x 12mm high. Sits 4mm proud of substrate.
Rebate Sawcut Dimensions: 3mm wide x 12mm deep *If substrate is less than 24mm please contact Freedom Works.
Product Warranty : 10 Years
Installation Warranty : 1 Year
Material Colour: Brass
Code Compliance:
- NZBC D1/AS1 Accessibility and Mobility
- NZS 4121 Structural Design Requiring Stair Nosing and treads
- AS/NZS 4586:2013 Slip resistance classification of new pedestrian surface materials
Slip Resistance Rating: P5 Rated / Co-Efficient of Friction – 62
Sustainability: Declare Certified
