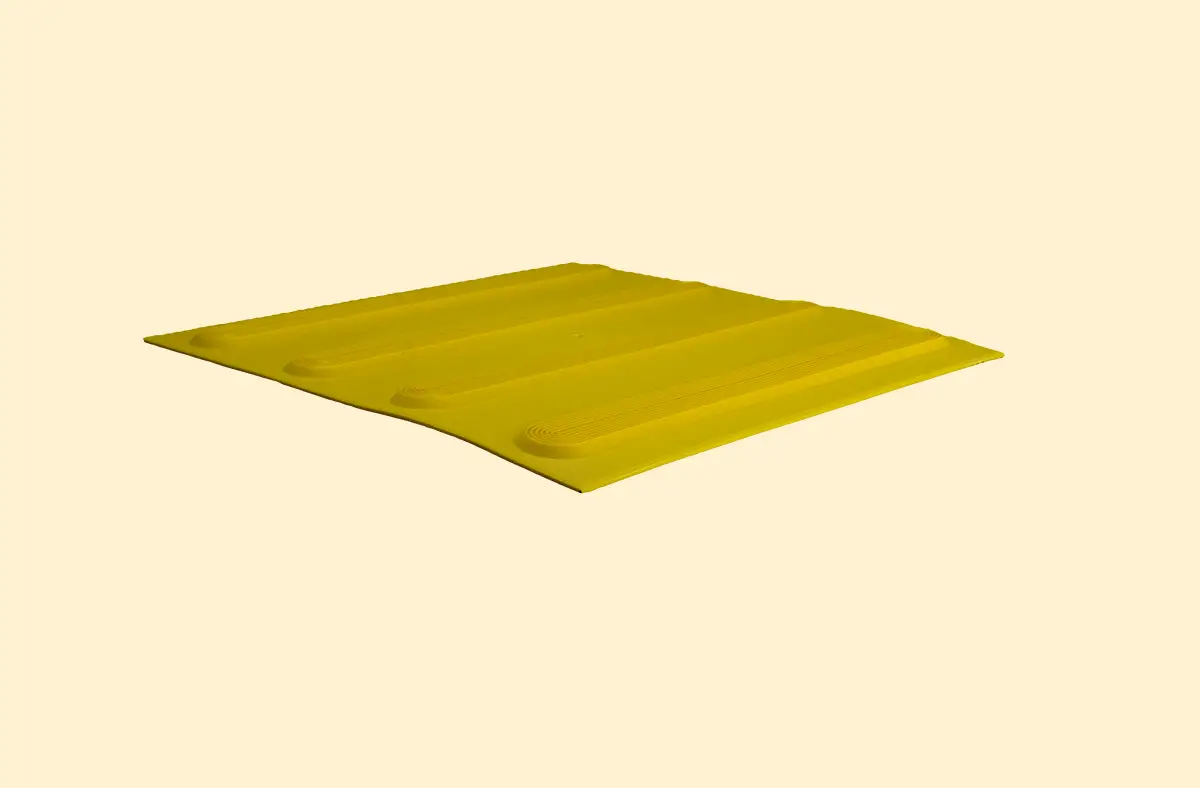

GMPTD4002 Guidemaster Polyurethane Directional Tactile - Designed to be very durable with a visible solid thermoplastic polyurethane. Engineered for accessibility to lead and guide the visually impaired to hazard / warning tactile.
Lead the vision impaired to Hazard / Warning Tactiles to warn as:
- Life threatening hazards where serious falls may occur, such as at railway platforms, wharves, vehicular driveways and exits from car parks, etc., which intersect access paths
- To indicate that a point of importance has been reached, such as the location of a bus sign or tram stop or the location of a change of direction on a pedestrian crossing island or as wayfinding to signify the location of a change of direction while traveling
- At the top and bottom of stairways and ramps warning of a change in level.
- At pedestrian crossings to indicate the path of travel
Declare: Living Building Challenge Criteria Compliant
Product Specs:

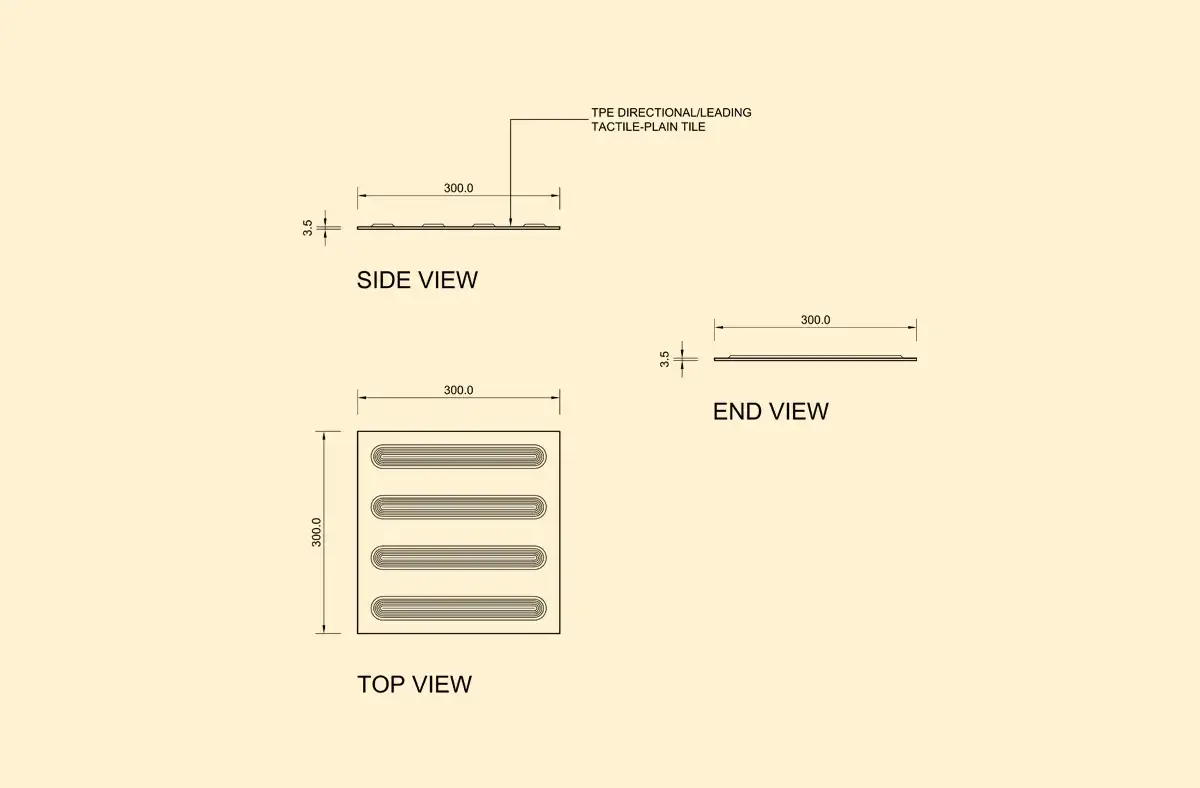

Tile Dimensions: 300 x 300 x 2mm thick
Polyurethane Colours: Safety Yellow, Black, Grey
Product Warranty :
Exterior - 2 Years
Installation Warranty : 1 Year
Code Compliance:
- NZTA RTS14โLand Transport New Zealandโ Guidelines for facilities for the blind and vision impaired
- AS/NZS 1428.4.1:2009โDesign for access and mobility, Part 4
NZS4121:2001โDesign for access and mobilityโbuilding and associated facilities - All slip resistance tests are done in accordance with AS/NZS4586:2004โ average COF #120
- Land Transportโs Pedestrian Planning and Design Guide
- The Royal N.Z. Foundation for the Blind Design Guide Recommendations/Specifications
Luminance Test: Provides colour contrast. Integrated Discrete Tactiles must have 30% minimum luminance contrast to that of the surround substrate surface area.
Masterspecs Code: Exterior 8281FG
