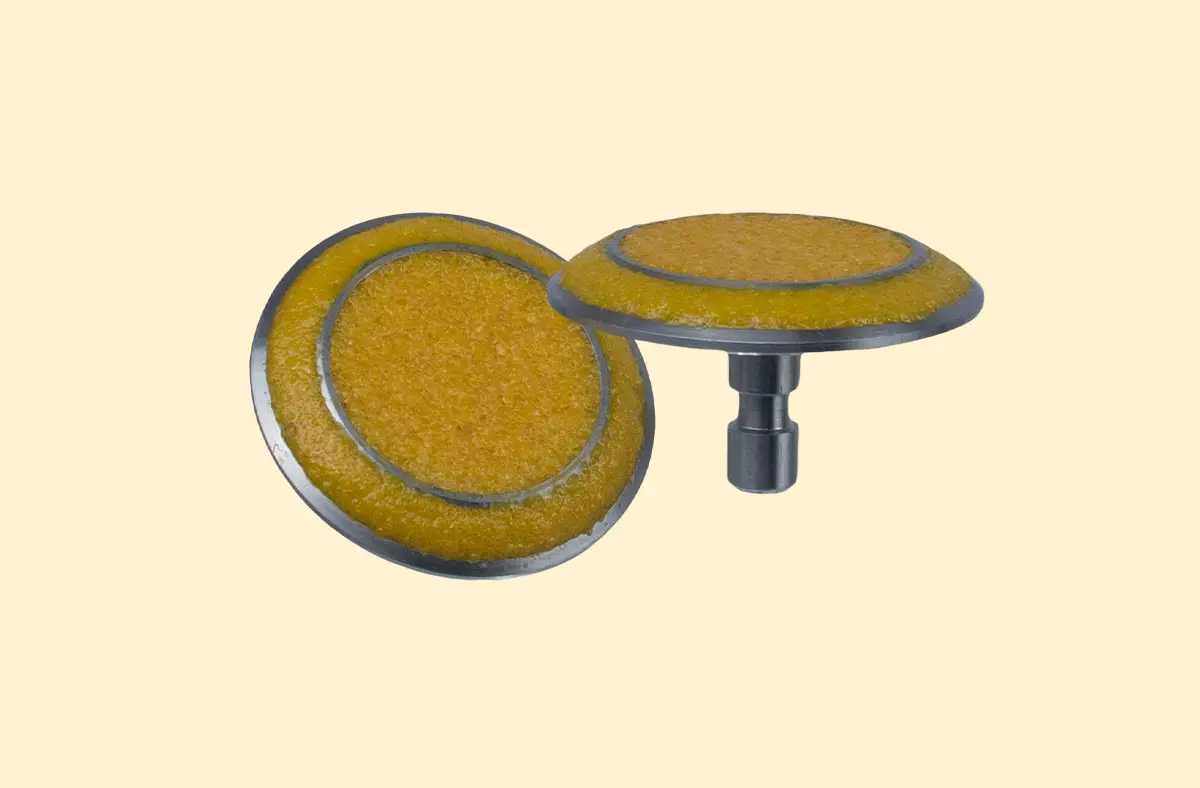

GMSSC30 Ground Surface Indicator – Designed for durability with a high anti-slip carborundum finish, and solid 316 marine grade stainless steel base. Engineered for accessibility to warn and guide the visually impaired to approaching hazards.
Warn the vision impaired of such warnings as:
- Life threatening hazards where serious falls may occur, such as at railway platforms, wharves, vehicular driveways and exits from car parks, etc., which intersect access paths
- To indicate that a point of importance has been reached, such as the location of a bus sign or tram stop or the location of a change of direction on a pedestrian crossing island or as wayfinding to signify the location of a change of direction while traveling
- At the top and bottom of stairways and ramps warning of a change in level.
- At pedestrian crossings to indicate the path of travel
Product Specs:

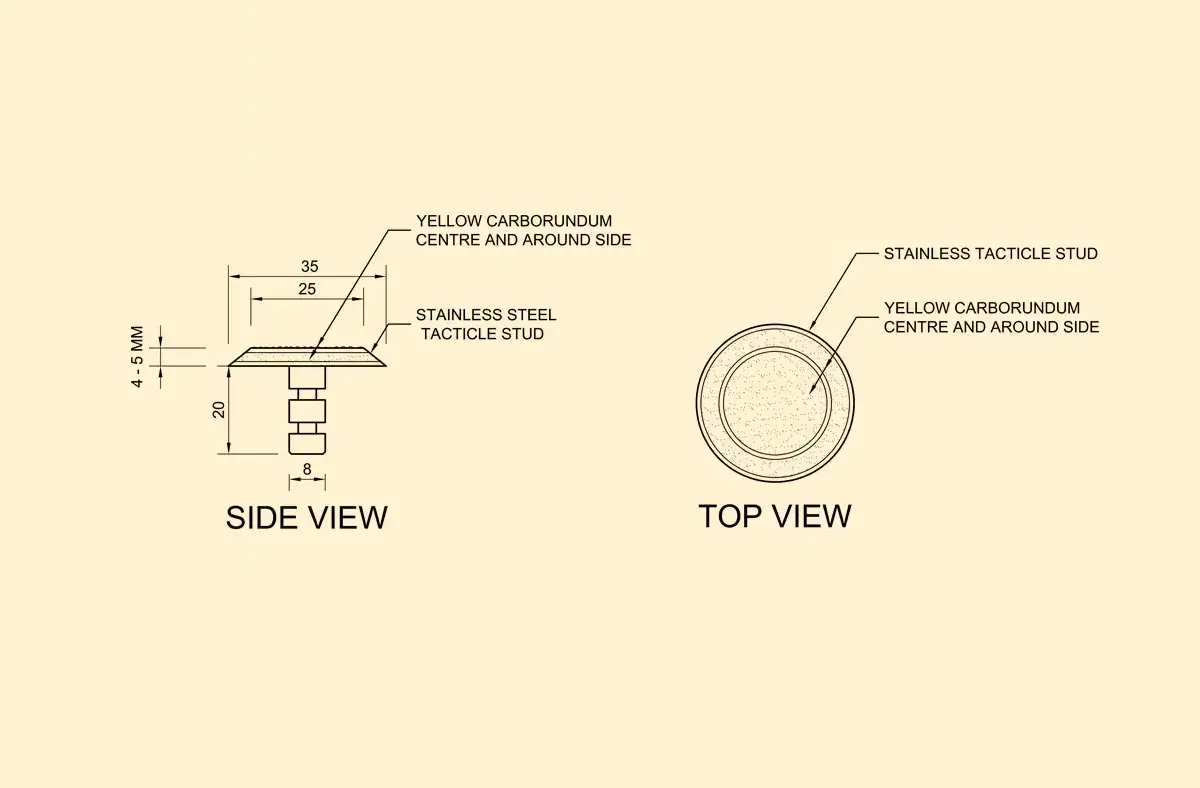

Design: Composite Discrete Hazard / Warning Tactile Indicator Stud
Material: Carborundum with 316 Stainless Steel
Carborundum Colour: Yellow
Product Warranty: 10 Years
Installation Warranty: 1 Year
Code Compliance:
- NZTA RTS14—Land Transport New Zealand— Guidelines for facilities for the blind and vision impaired
- AS/NZS 1428.4.1:2009—Design for access and mobility, Part 4
- NZS4121:2001—Design for access and mobility - building and associated facilities
- AS/NZS4586:2004 – Slip resistance classification of new pedestrian surface materials
- Land Transport’s Pedestrian Planning and Design Guide
- The Royal N.Z. Foundation for the Blind Design Guide Recommendations/Specifications
Luminance Test: Requires a 60% colour contrast
Slip Rating: P5 Rated / Co-Efficient of Friction – #120
Sustainability: Declare Certified
Masterspecs Code: Interior: 6615FG | Exterior: 8281FG
