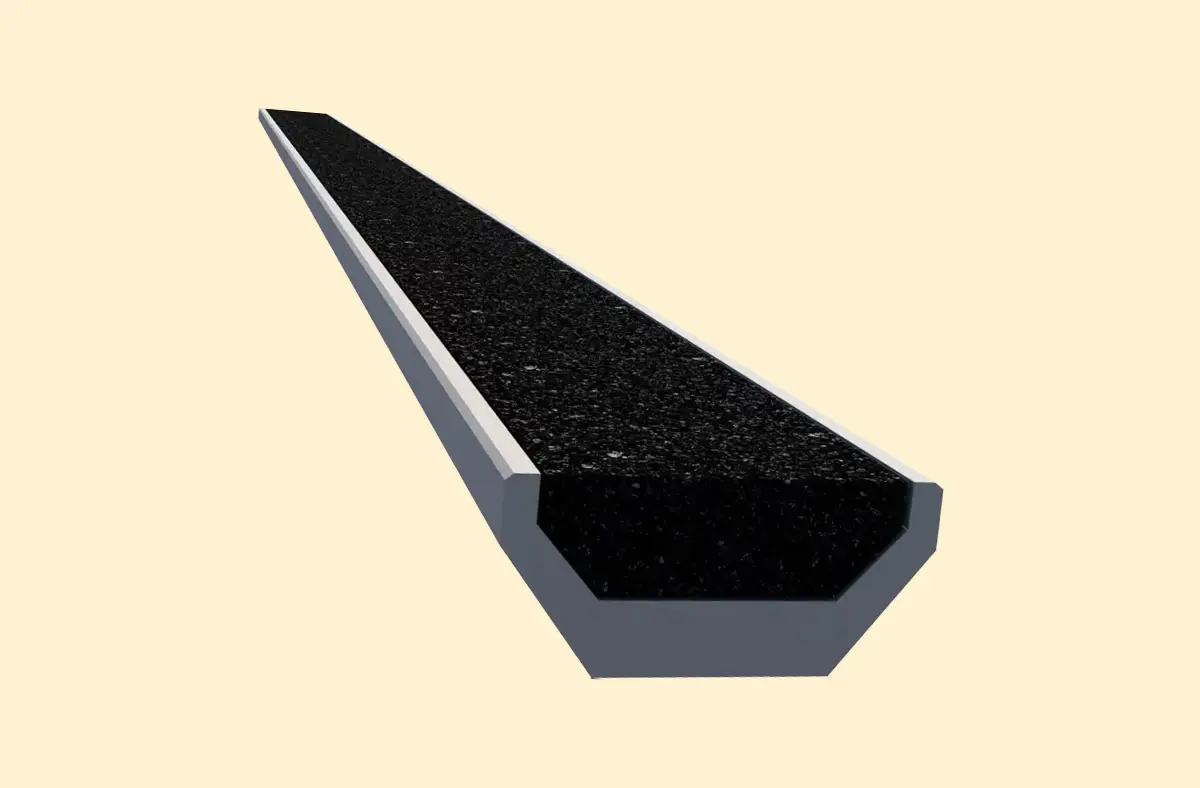

SMW10 Anti-Slip Walkway Insert - Designed with Silver Anodised Aluminium and a Black Carborundum Infill this Insert rebates into your Deck Boards, adding an aesthetic value and high anti-slip resistance finish.
SMW10 is the solution to transform potentially slippery timber area’s into a safe zone throughout all weather conditions.
Key Benefits:
- Extremely durable
- Resistant to mold and fungal growth
- Enhances stability
- Sustainably sourced
- High anti-slip resistance property
- Add to aesthetic value
- Low Maintenance
Applicable but not limited to:
- Ramps, footbridges, boardwalks and pontoons
- Deck edging
- Existing decks
Product Specs:

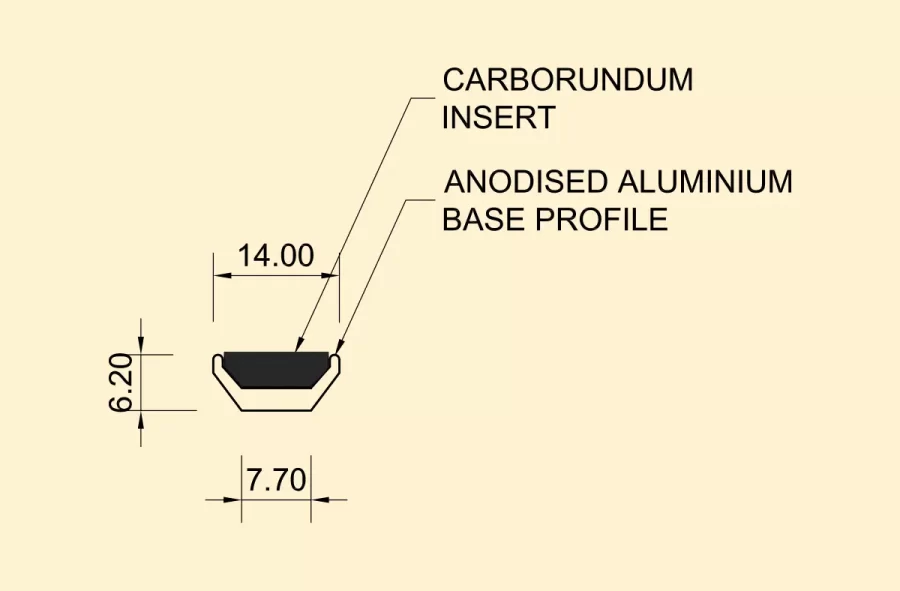

Design: Silver Anodised Channel Profile with Solid Carborundum Infill
Rebate Dimensions: 14mm wide x 7mm deep
Insert Layout:
90mm Timber Width - 2 Inserts Spacing:
- Timber edge to centre of insert - 27mm
- Centre to centre of insert - 36mm
140mm Timber Width - 3 Inserts Spacing:
- Timber edge to centre of insert - 37mm
- Centre to centre of insert - 33mm
Product Dimensions:
- Width: 14mm
- Depth: 6.20mm
Fixings: Adhesive Fixed
Product Warranty : 10 Years
Installation Warranty : 1 Year
Infill Type: Carborundum Epoxy Resin System
Infill Colour: Black
Code Compliance:
- NZBC D1/AS1 Access routes
- AS/NZS 4586: 2004 Slip Resistance
Insert Slip Rating: SRV of 73.
