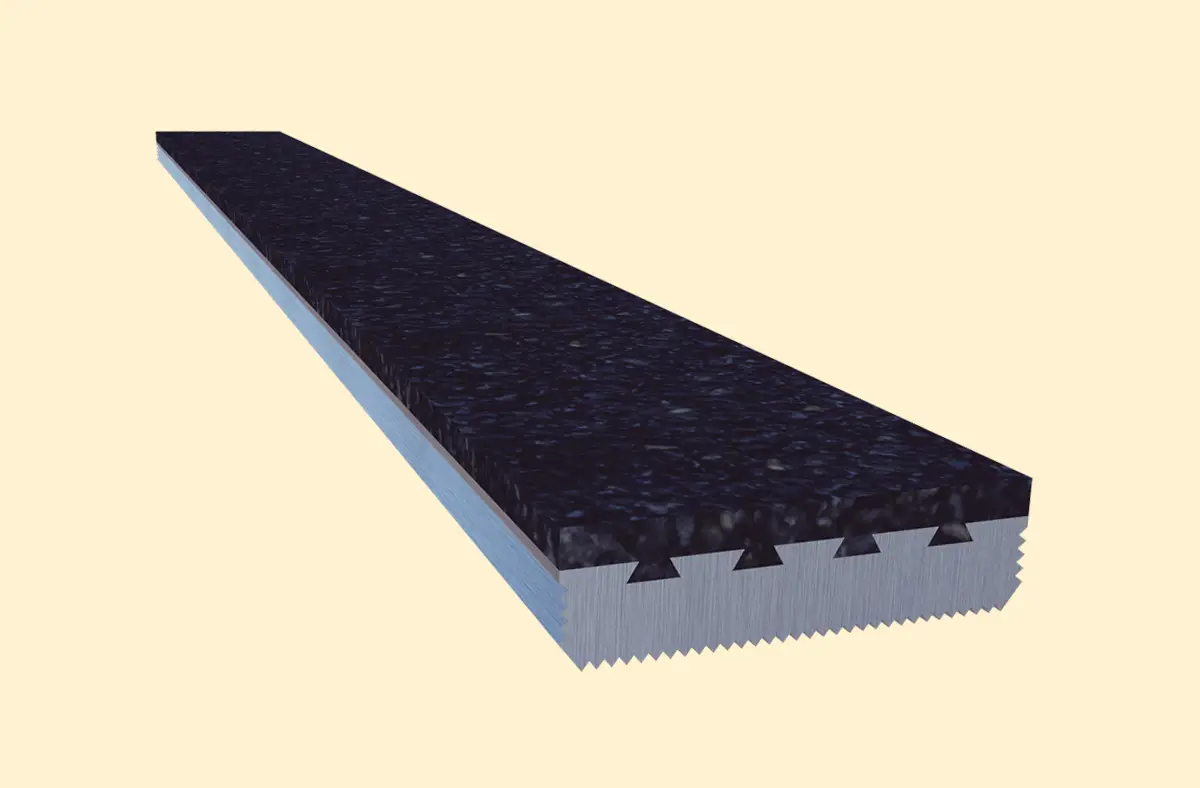

SMW20 Anti-Slip Walkway Insert - Designed with Silver Anodised Aluminium and a Bauxite Aggregate Resin Infill this Insert adhesive fixed into your Deck Boards, adding an aesthetic value and high anti-slip resistance finish. SMW20 is the solution to transform potentially slippery timber areaโs into a safe zone throughout all weather conditions.
Key Benefits:
- Extremely durable
- Resistant to mold and fungal growth
- Enhances stability
- Sustainably sourced
- High anti-slip resistance property
- Add to aesthetic value
- Low Maintenance
Applicable but not limited to:
- Ramps, footbridges, boardwalks and pontoons
- Deck edging
- Existing decks
Infill Colour Options
Product Specs:

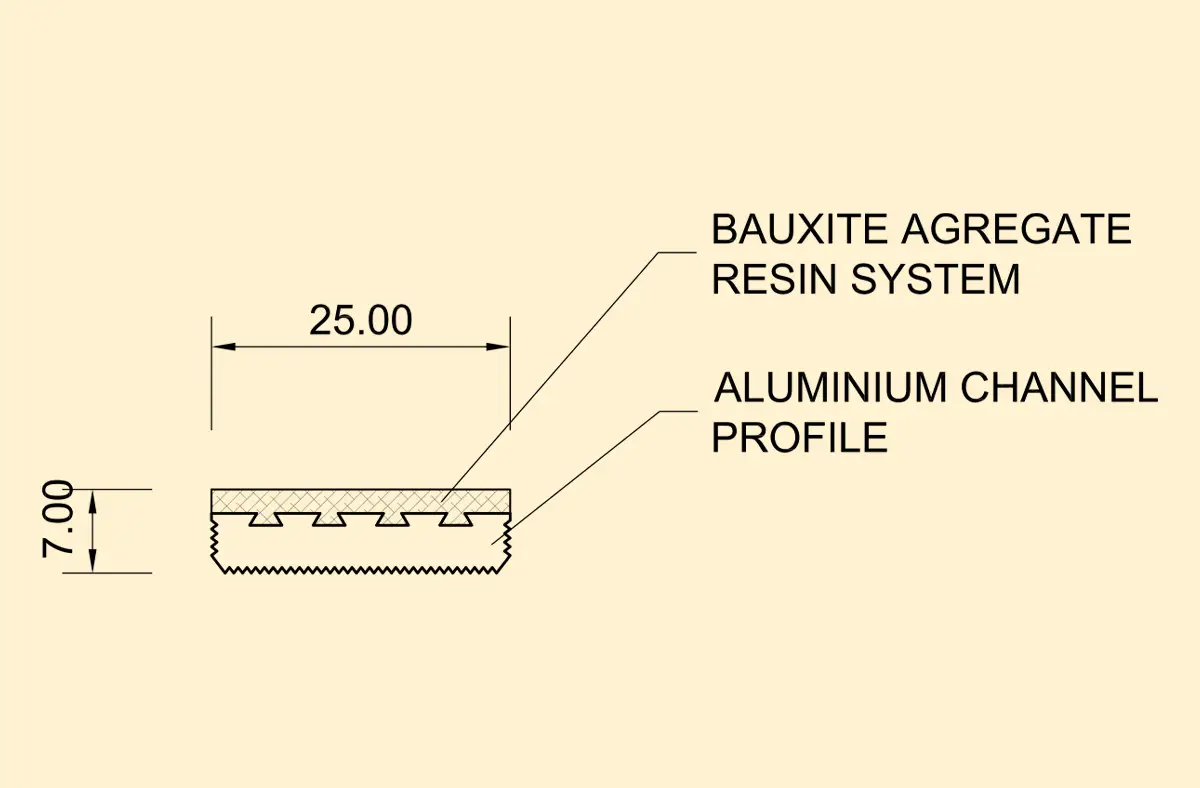

Design: Silver Anodised Base Profile with Bauxite Aggregate Resin Infill
Rebate Dimensions: 25mm wide x 8mm deep
Insert Layout:
90mm Timer Width - 1 Insert Spacing
- Timber edge to centre of insert: 45 mm
- Centre to centre of insert: 33 mm
140mm Timer Width - 2 Insert Spacing
- Timber edge to centre of insert: 42.5 mm
- Centre to centre of insert: 55 mm
Fixing Type: Adhesive Fixed
Product Warranty : 10 Years
Installation Warranty : 1 Year
Infill Type: Bauxite Aggregate Resin System

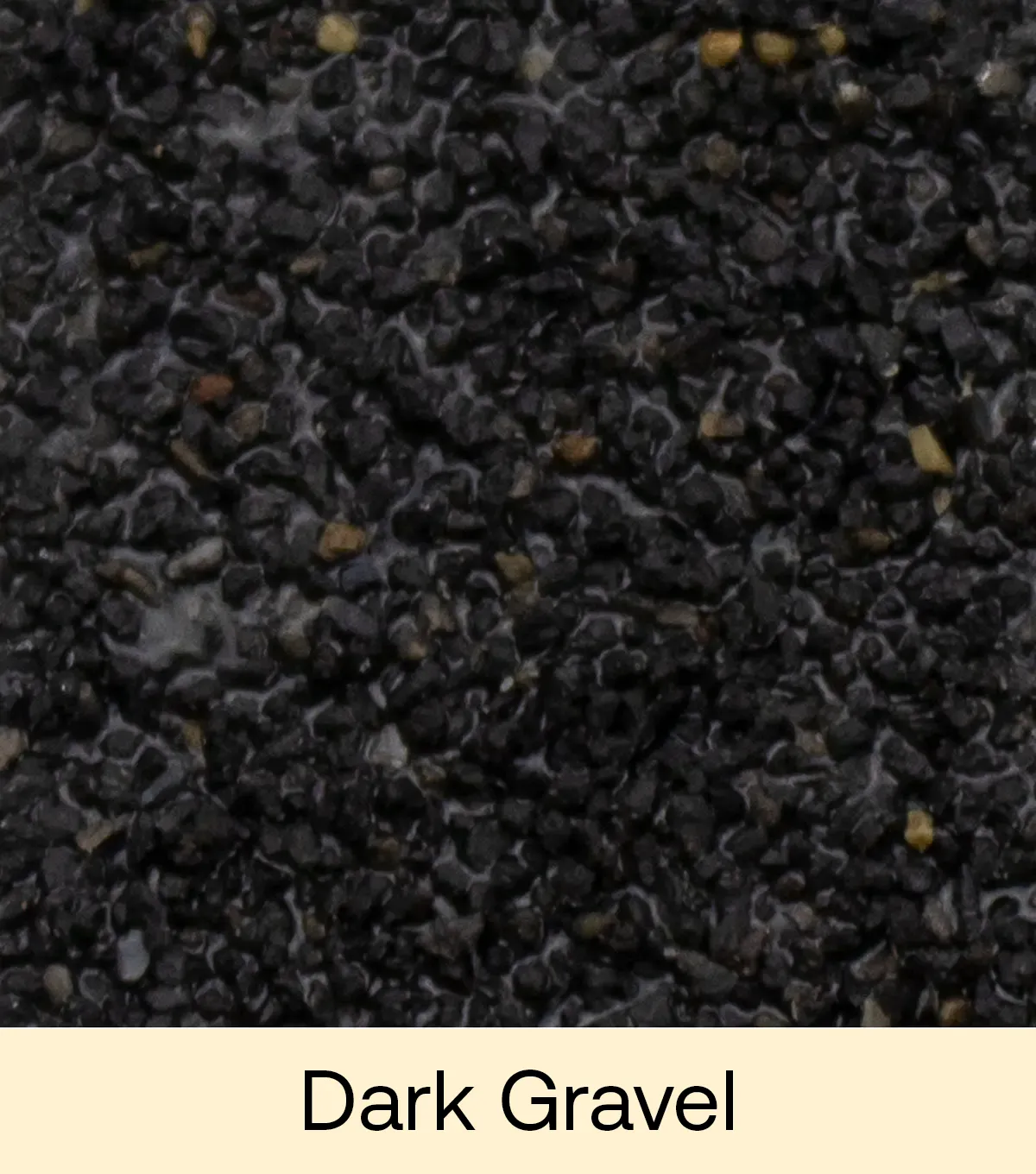

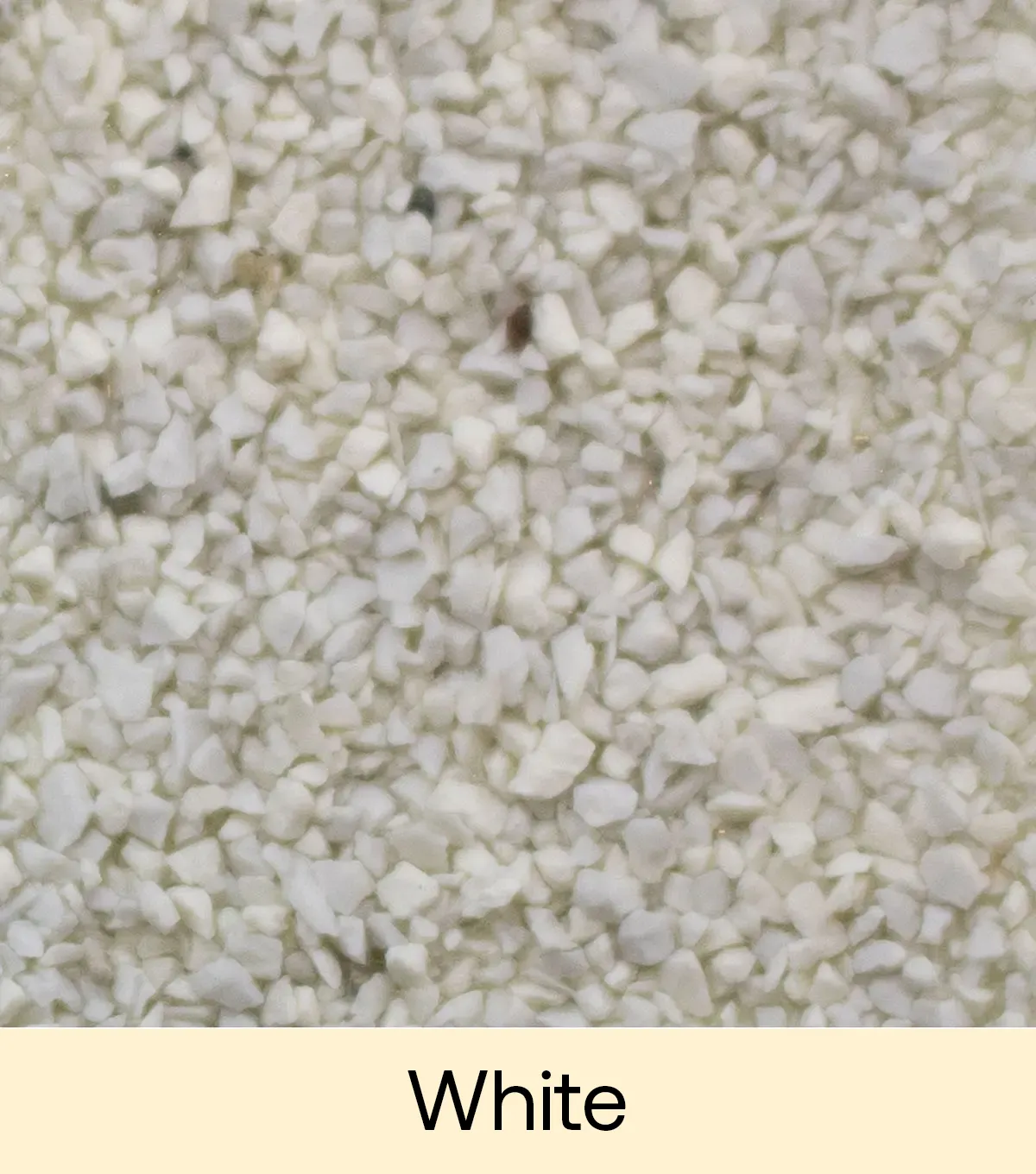

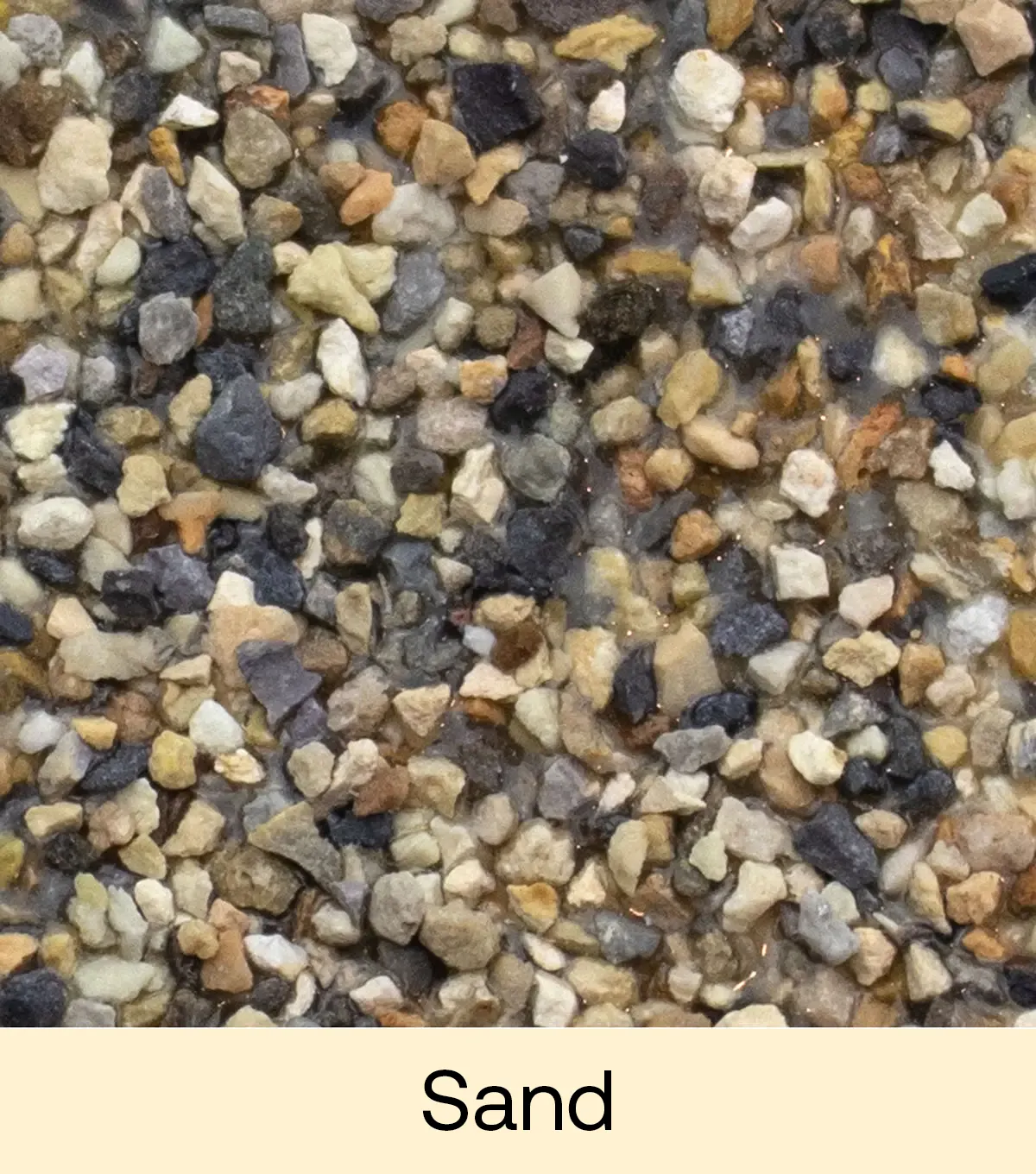

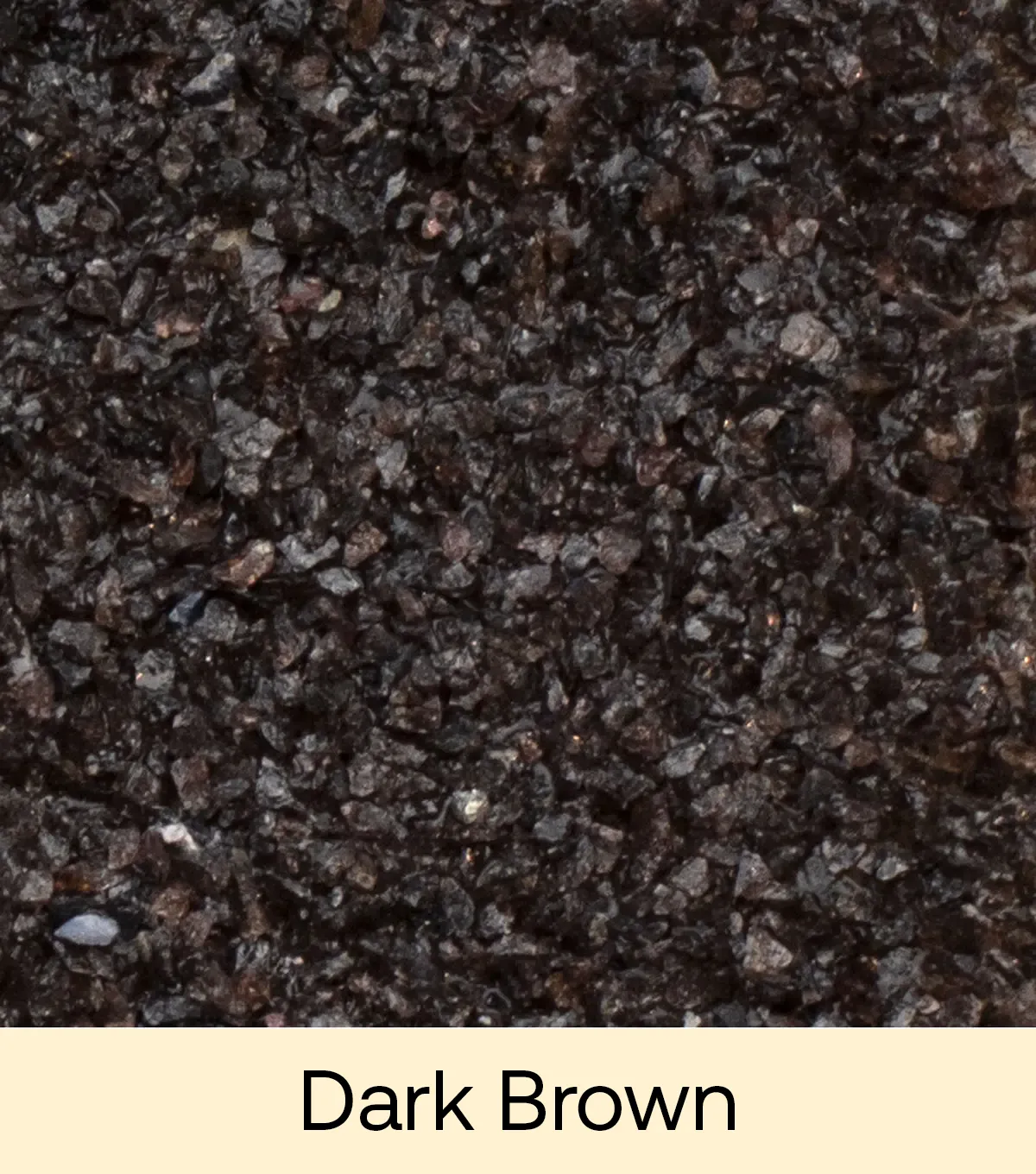

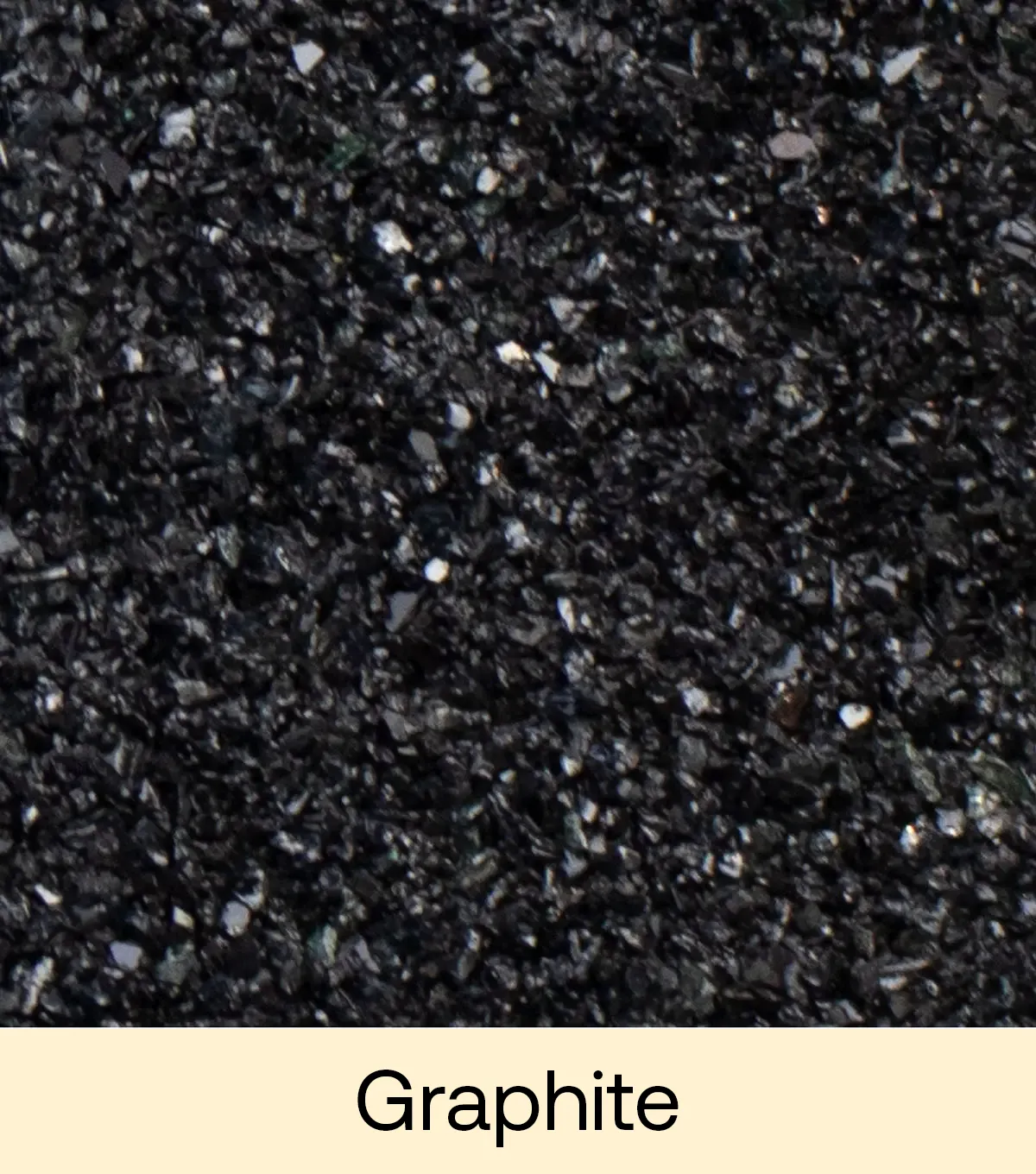

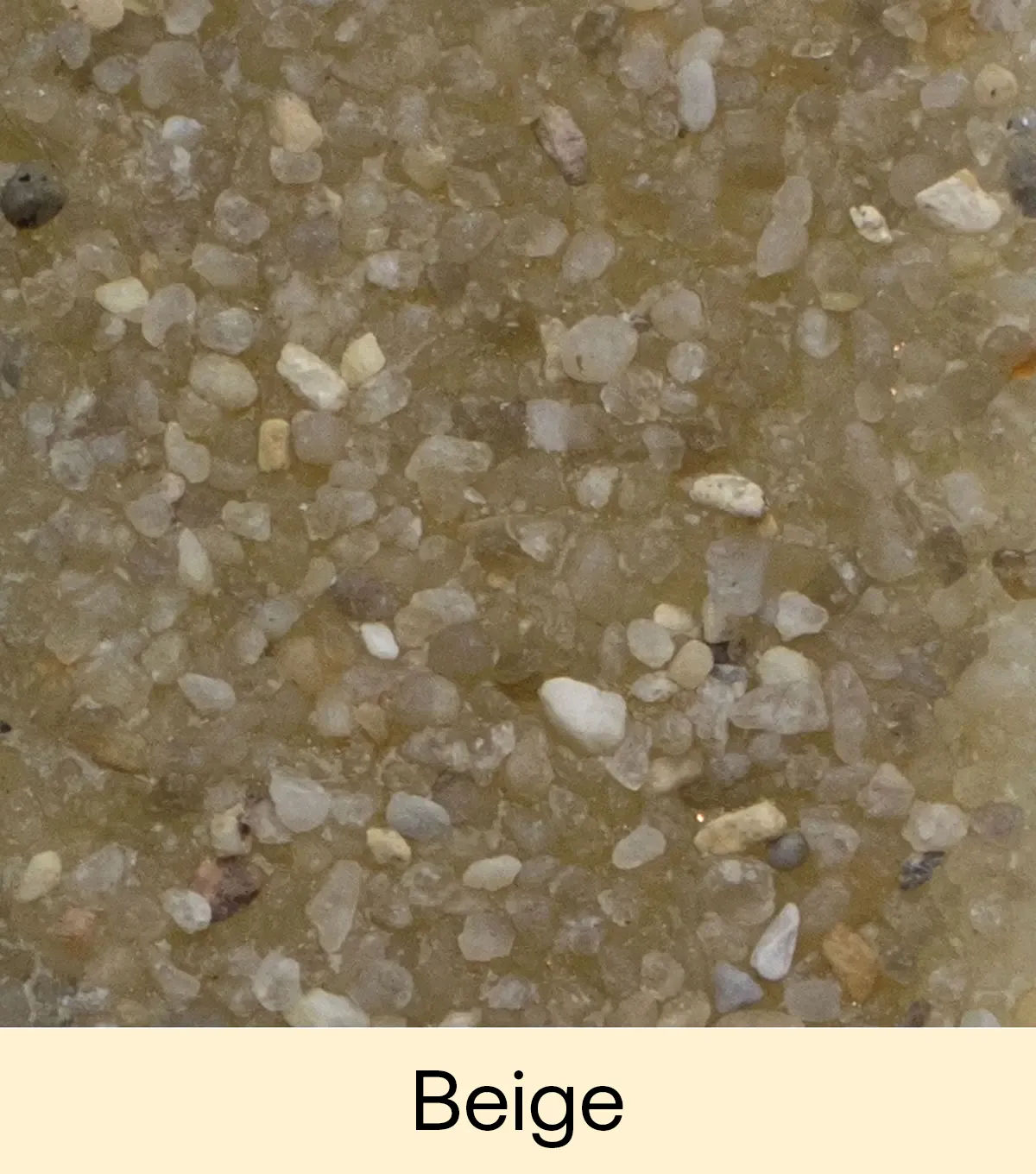

Infill Colours: Sand, Beige, White, Graphite, Dark Gravel, Dark Brown
Code Compliance:
- NZBC D1/AS1 Access routes
- AS/NZS 4586: 2004 Slip Resistance
Insert Slip Rating: SRV of 65.
Masterspecs Code: 4391FS
